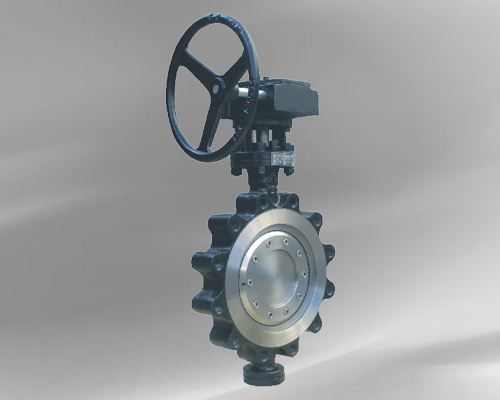

API(Lug Type)Cast Steel Butterfly Valve
Size:NPS6"~36" Pressure: CLASS 150LB~300LB
Material: WCB,CF8, CF3, CF3M,CF8M,CF8C
Design & Manufacture Std: API 609
Face To Face Std: ASME B16.10
Flange Dimension conform to : ASME B16.5, ASME B16.47
Test Std: API 598

Parts NO.	Parts Name	Material
Parts NO.	Parts Name	A216 WCB	A351 CF8	A351 CF8M
1	Bushing	S.S	S.S	S.S
2	Snap Ring	ASTM SS304	ASTM SS304	ASTM SS304
3	Sealing Shim	GRAPHITE	GRAPHITE	GRAPHITE
4	Lower Gap	CARBON STEEL	ASTM SS304	ASTM SS316
5	Body	ASTM A216 WCB	ASTM A351 CF8	ASTM A351 CF8M
6	Sealing Ring	SS304+GRAPHITE	SS304+GRAPHITE	SS316+GRAPHITE
7	Compresure Plate	ASTM A182 F6	ASTM SS304	ASTM SS316
8	Disc	ASTM A216 WCB	ASTM A351 CF8	ASTM A351 CF8M
9	Stem	ASTM A182 F6	ASTM A182 F304	ASTM A182 F316
10	Packing	GRAPHITE	GRAPHITE	GRAPHITE
11	Flange Gland	ASTM A216 WCB	ASTM A351 CF8	ASTM A351 CF8
12	Bolt	ASTM A193 B7	ASTM A320 B8	ASTM A320 B8
13	Nut	ASTM A194 2H	ASTM A194 8	ASTM A194 8
14	Worm Gear actuator

Size	150LB Main Dimension (mm)
NPS	L	D1	D2	H1	H2	N-in	Do
6	57	241.5	216	470	175	8-3/4"	290
8	64	298.5	270	515	220	8-3/4"	290
10	71	362	324	560	255	12-7/8"	290
12	81	432	381	625	300	12-7/8"	320
14	92	476.5	413	655	325	12-1"	320
16	102	540	470	770	370	16-1"	380
18	114	578	533	790	390	16-1 1/8"	380
20	127	635	584	850	410	20-1 1/8"	380
24	154	749.5	692	925	470	20-1 1/4"	380
28	165	863.5	800	965	485	28-1 1/4"	380
30	165	914.5	857	995	510	28-1 1/4"	380
32	190	978	914	1045	545	28-1 1/2"	380
36	203	1086	1022	1170	610	32-1 1/2"	480
Size	300LB Main Dimension (mm)
NPS	L	D1	D2	H1	H2	N-in	Do
6	59	270	216	500	210	12-3/4"	290
8	73	330	270	565	240	12-7/8"	320
10	83	387.5	324	620	275	16-1"	320
12	92	451	381	665	310	16-1 1/8"	380
14	117	514.5	413	700	350	20-1 1/8"	380
16	133	571.5	470	820	380	20-1 1/4"	380
18	149	628.5	533	850	415	24-1 1/4"	380
20	159	686	584	930	450	24-1 1/4"	380
24	181	813	692	1005	525	24-1 1/2"	380
