| API Globe Valve |
 |
|
 |
|
CLASS 150LB |
|
Test
presure |
Shell test |
3.0 |
Mpa |
|
Back seal test |
2.2 |
|
Seal test |
2.2 |
|
Air test |
0.6 |
|
Suitable Temp |
-29~425oC |
|
Suitable Medium |
Water,Steam,Oil,ect |
|
CLASS 150LB 10" and above110" will be double disc |
|
CLASS 150LB 14" and above 14" Gear OP. |
|
|

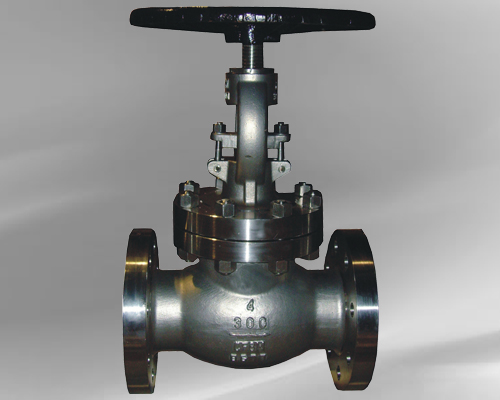

Cast Steel Globe Valve
Size:NPS 2"~48" Pressure: CLASS 150LB~2500LB
Material: WCB, LCB, LCC,WC6, C5,C12, CF8, CF8M, CF3, CF3M,CF8C
Design & Manufacture Std: BS 1873
Flange Dimension conform to : ASME B16.5, ASME B16.47,B16.11,B16.25
Face To Face Std: ASME B16.10 Test Std: API 598 | |
|
Parts NO. |
Parts name |
WCB Trim No.1 |
WCB Trim No.5 |
A351 CF8 |
A351 CF8M |
|
1 |
Body |
ASTM A216 WCB+13CR |
ASTM A216 WCB+STL |
ASTM A351 CF8 |
ASTM A351 CF8M |
|
2 |
Disc |
ASTM A216 WCB+13CR |
ASTM A216 WCB+STL |
ASTM A351 CF8 |
ASTM A351 CF8M |
|
3 |
Stem |
ASTM A182 F6A |
ASTM A182 F6A |
ASTM A182 F304 |
ASTM A182 F316 |
|
4 |
Sleeve |
CARBON STEEL |
CARBON STEEL |
ASTM A182 F304 |
ASTM A182 F316 |
|
5 |
Bolt |
ASTM A193 B7 |
ASTM A193 B7 |
ASTM A193 B8 |
ASTM A193 B8 |
|
6 |
Nut |
ASTM A194 2H |
ASTM A194 2H |
ASTM A194 8 |
ASTM A194 8 |
|
7 |
Gasket |
GRAPHITE+SS304 |
GRAPHITE+SS304 |
GRAPHITE+SS304 |
GRAPHITE+SS316 |
|
8 |
Bonnet |
ASTM A216 WCB |
ASTM A216 WCB |
ASTM A351 CF8 |
ASTM A351 CF8M |
|
9 |
Back seat |
A182 F6A |
A182 F6A |
ASTM A351 CF8 |
ASTM A351 CF8M |
|
10 |
Packing |
GRAPHITE |
GRAPHITE |
GRAPHITE or PTFE |
GRAPHITE or PTFE |
|
11 |
Gland |
A182 F6A |
A182 F6A |
A182 F304 |
A182 F316 |
|
12 |
Gland Flange |
ASTM A216 WCB |
ASTM A216 WCB |
ASTM A351 CF8 |
ASTM A351 CF8 |
|
13 |
Eye bolt |
ASTM A193 B7 |
ASTM A193 B7 |
ASTM A193 B8 |
ASTM A193 B8 |
|
14 |
Nut |
ASTM A1942H |
ASTM A194 2H |
ASTM A194 8 |
ASTM A194 8 |
|
15 |
Pin |
1025 |
1025 |
SS |
SS304 |
|
16 |
Stem Nut |
COPPER ALLOY or D2 |
COPPER ALLOY or D2 |
COPPER ALLOY or D2 |
COPPER ALLOY or D2 |
|
17 |
Hand Wheel |
QT400-18 |
QT400-18 |
QT400-18 |
QT400-18 |
|
18 |
Nut |
ASTM A194 2H |
ASTM A194 2H |
ASTM A194 8 |
ASTM A194 8 |
|
19 |
Nameplate |
SS |
SS |
SS |
SS |
|
Size. |
150LB Main Dimension (mm) |
|
NPS |
d |
D |
D1 |
D2 |
b |
f |
n-ød |
L |
H |
W |
|
2" |
51 |
152 |
120.5 |
92 |
16 |
1.6 |
4-ø19 |
203 |
315 |
200 |
|
2.5" |
64 |
178 |
139.5 |
105 |
18 |
1.6 |
4-ø19 |
216 |
341 |
220 |
|
3" |
76 |
190 |
152.5 |
127 |
19 |
1.6 |
4-ø19 |
241 |
395 |
250 |
|
4" |
102 |
229 |
190.5 |
157 |
24 |
1.6 |
8-ø19 |
292 |
436 |
280 |
|
5" |
127 |
254 |
216 |
186 |
24 |
1.6 |
8-ø22 |
356 |
474 |
300 |
|
6" |
152 |
279 |
241.5 |
216 |
26 |
1.6 |
8-ø22 |
406 |
530 |
400 |
|
8" |
203 |
343 |
298.5 |
270 |
29 |
1.6 |
8-ø22 |
495 |
608 |
450 |
|
10" |
254 |
406 |
362 |
324 |
31 |
1.6 |
12-ø25 |
622 |
897 |
500 |
|
12" |
305 |
483 |
432 |
381 |
32 |
1.6 |
12-ø25 |
698 |
1018 |
600 |
|
14" |
337 |
533 |
476 |
413 |
35 |
1.6 |
12-ø29 |
787 |
1168 |
530 |
|
16" |
387 |
597 |
540 |
470 |
37 |
1.6 |
16-ø29 |
914 |
1328 |
530 |
|
18" |
438 |
635 |
578 |
533 |
40 |
1.6 |
16-ø32 |
978 |
1508 |
600 |
|
20" |
489 |
699 |
635 |
584 |
43 |
1.6 |
20-ø32 |
978 |
1628 |
600 |
|
24" |
591 |
813 |
749.5 |
693 |
48 |
1.6 |
20-ø35 |
1295 |
1740 |
600 |
|
|
|
CLASS 300LB |
|
Test
presure |
Shell test |
7.5 |
Mpa |
|
Back seal test |
5.5 |
|
Seal test |
5.5 |
|
Air test |
0.6 |
|
Suitable Temp |
-29~425oC |
|
Suitable Medium |
Water,Steam,Oil,ect |
|
CLASS 300LB 8βand above 8"will be double disc |
|
CLASS 300LB 14"and above 14"Gear OP. |
| |
|
Size. |
300LB Main Dimension (mm) |
|
NPS |
d |
D |
D1 |
D2 |
b |
f |
n-ød |
L |
H |
W |
|
2" |
51 |
165 |
127 |
92 |
23 |
1.6 |
8-ø19 |
267 |
320 |
220 |
|
2.5" |
64 |
190 |
149 |
105 |
26 |
1.6 |
8-ø22 |
292 |
395 |
250 |
|
3" |
76 |
210 |
168.5 |
127 |
29 |
1.6 |
8-ø22 |
318 |
425 |
300 |
|
4" |
102 |
254 |
200 |
157 |
32 |
1.6 |
8-ø22 |
356 |
465 |
350 |
|
5" |
127 |
279 |
235 |
186 |
35 |
1.6 |
8-ø22 |
400 |
570 |
400 |
|
6" |
152 |
318 |
270 |
216 |
37 |
1.6 |
12-ø22 |
444.5 |
562 |
450 |
|
8" |
203 |
381 |
330 |
270 |
42 |
1.6 |
12-ø25 |
559 |
709 |
500 |
|
10" |
254 |
445 |
387.5 |
324 |
48 |
1.6 |
16-ø29 |
622 |
856 |
500 |
|
12" |
305 |
521 |
451 |
381 |
51 |
1.6 |
16-ø32 |
711 |
1006 |
500 |
|
|
|
CLASS 600LB |
|
Test
presure |
Shell test |
15.0 |
Mpa |
|
Back seal test |
11.0 |
|
Seal test |
11.0 |
|
Air test |
0.6 |
|
Suitable Temp |
-29~425oC |
|
Suitable Medium |
Water,Steam,Oil,ect |
|
CLASS 600LB 10"and above 10"Gear OP. | | |
|
Size. |
600LB Main Dimension (mm) |
|
NPS |
d |
D |
D1 |
D2 |
b |
f |
n-ød |
L |
H |
W |
|
2" |
51 |
165 |
127 |
92 |
26 |
6.4 |
8-ø19 |
292 |
358 |
280 |
|
3" |
76 |
210 |
168 |
127 |
32 |
6.4 |
8-ø22 |
356 |
505 |
300 |
|
4" |
102 |
273 |
216 |
157 |
38 |
6.4 |
8-ø25 |
432 |
603 |
400 |
|
6" |
152 |
356 |
292 |
216 |
48 |
6.4 |
12-ø29 |
559 |
752 |
500 |
|
8" |
200 |
419 |
349 |
270 |
56 |
6.4 |
12-ø32 |
660 |
876 |
550 |
|
10" |
248 |
508 |
432 |
324 |
64 |
6.4 |
16-ø35 |
787 |
920 |
650 |
|
12" |
298 |
559 |
489 |
381 |
67 |
6.4 |
20-ø35 |
838 |
1100 |
530 |
|
|
|
CLASS 900LB |
|
Test
presure |
Shell test |
22.4 |
Mpa |
|
Back seal test |
16.4 |
|
Seal test |
16.4 |
|
Air test |
0.6 |
|
Suitable Temp |
-29~425oC |
|
Suitable Medium |
Water,Steam,Oil,ect |
|
CLASS 900LB 10"and above 10"Gear OP. | | |
|
Size. |
900LB Main Dimension (mm) |
|
NPS |
d |
D |
D1 |
D2 |
b |
f |
n-ød |
L |
H |
W |
|
2" |
47 |
216 |
165 |
92 |
38.5 |
6.4 |
8-ø26 |
368 |
405 |
280 |
|
3" |
73 |
241 |
190.5 |
127 |
38.5 |
6.4 |
8-ø26 |
381 |
609 |
400 |
|
4" |
98 |
292 |
235 |
157 |
44.5 |
6.4 |
8-ø32 |
457 |
654 |
450 |
|
6" |
146 |
381 |
317.5 |
216 |
56 |
6.4 |
12-ø32 |
610 |
790 |
600 |
|
8" |
190 |
470 |
393.5 |
270 |
63.5 |
6.4 |
12-ø38 |
737 |
890 |
600 |
|
10" |
238 |
546 |
470 |
324 |
70 |
6.4 |
16-ø38 |
838 |
1054 |
530 |
|
12" |
282 |
610 |
533.5 |
381 |
79.5 |
6.4 |
20-ø38 |
965 |
1295 |
530 | |
