DIN Check Valve

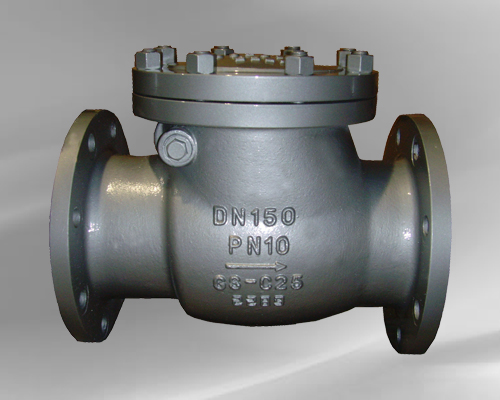

DIN Cast Steel Swing Check Valve
Size:DN50~DN500 Pressure: PN10~PN100
Material: GS-C25
(1.0619),1.4803(CF8),1.4408(CF8M),WCB, LCB,WC6, CF3, CF3M,CF8C
Design & Manufacture Std: DIN3840 and BS1868

Face To Face Std: DIN 3202
Flange Dimension conform to : BS EN1092-1 ,DIN 2543,DIN2544,DIN2545 ,DIN2546
Test Std: DIN 3230 or API 598

Parts NO.

Parts Name

Material

GS-C25 Trim NO.1

GS-C25 Trim NO.5

1.4308

1.4408

1

Body

DIN 17245 GS-C25+13Cr

DIN 17245 GS-C25+STL

DIN 17445 1.4308

DIN 17445 1.4408

2

Disc

DIN 17245 GS-C25+13CR

DIN 17245 GS-C25+STL

DIN 17445 1.4308

DIN 17445 1.4408

3

Disc nut

ASTM A194 2H

ASTM A194 2H

ASTM A194 8

ASTM A194 8M

4

Arm

DIN 17245 GS-C25+13Cr

DIN 17245 GS-C25+STL

DIN 17445 1.4308

DIN 17445 1.4408

5

Arm Pin

ASTM A182 F6A

ASTM A182 F6A

ASTM A182 F304

ASTM A182 F316

6

Bonnet Bolt

ASTM A193 B7

ASTM A193 B7

ASTM A193 B8

ASTM A193 B8

7

Bonnet Nut

ASTM A194 2H

ASTM A194 2H

ASTM A194 8

ASTM A194 8

8

Gasket

Graphite + SS304

Graphite + SS304

Graphite + SS304

Graphite + SS316

9

Bonnet

DIN 17245 GS-C25

DIN 17245 GS-C25

DIN 17445 1.4308

DIN 17445 1.4408

10

Eye Bolt

Carbon Steel

Carbon Steel

Carbon Steel

Carbon Steel

11

Plug

Carbon Steel

Carbon Steel

ASTM A182 F304

ASTM A182 F316


Size

PN16 Main Dimension (mm)

DN

D

D1

D2

b

f

n-fd

L

H

50

165

125

102

20

3

4-f18

200

145

65

185

145

122

18

3

4-f18

240

160


80

200

160

138

20

3

8-f18

260

175

100

220

180

158

20

3

8-f18

300

190

125

250

210

188

22

3

8-f18

350

265

150

285

240

212

22

3

8-f22

400

285

200

340

295

268

24

3

12-f22

500

345

250

405

355

320

26

3

12-f26

600

394

300

460

410

378

28

4

12-f26

700

420

350

520

470

438

30

4

16-f26

800

460

400

580

525

490

32

4

16-f30

900

530

500

715

650

610

36

4

20-f33

1100

630

Size

PN25 Main Dimension (mm)

DN

D

D1

D2

b

f

n-fd

L

H

50

165

125

102

20

3

4-f18

230

145

65

185

145

122

22

3

8-f18

290

160

80

200

160

138

24

3

8-f18

310

175

100

235

190

162

24

3

8-f22

350

190

125

270

220

188

24

3

8-f26

400

265

150

300

250

218

28

3

8-f26

480

285

200

360

310

278

30

3

12-f26

600

345

250

425

370

335

32

3

12-f30

730

394

300

485

430

395

34

4

16-f30

850

420

350

555

490

450

36

4

16-f33

980

460

400

620

550

505

40

4

16-f36

1100

530

500

730

660

615

40

4

20-f36

1250

650

Size

PN40 Main Dimension (mm)

DN

D

D1

D2

b

f

n-fd

L

H

50

165

125

102

20

3

4-f18

230

145

65

185

145

122

22

3

8-f18

290

160

80

200

160

138

24

3

8-f18

310

180

100

235

190

162

24

3

8-f22

350

190

125

270

220

188

24

3

8-f26

400

265

150

300

250

218

28

3

8-f26

480

285

200

375

320

285

30

3

12-f30

600

350

250

450

385

345

32

3

12-f33

730

400

300

515

450

410

34

4

16-f33

850

420

350

580

510

465

38

4

16-f36

980

500

400

660

585

535

50

4

16-f39

1100

610

500

755

670

615

52

4

20-f42

1250

690

Size

PN63 Main Dimension (mm)

DN

D

D1

D2

b

f

n-fd

L

H

50

180

135

102

26

3

4-f22

300

175

65

205

160

122

26

3

8-f22

340

190

80

215

170

138

28

3

8-f22

380

210

100

250

200

162

30

3

8-f26

430

245

125

295

240

188

34

3

8-f30

500

299

150

345

280

218

36

3

8-f33

550

335

200

415

345

285

42

3

12-f36

650

390

250

470

400

345

46

3

12-f36

775

455

300

530

460

410

52

4

16-f36

900

520

350

600

525

465

56

4

16-f39

1025

575

400

670

585

535

60

4

16-f42

1150

630

500

800

705

615

68

4

20-f48

1400

750

Size

PN100 Main Dimension (mm)

DN

D

D1

D2

b

f

n-fd

L

H

50

195

145

102

30

3

8-f26

300

205

65

220

170

122

34

3

8-f26

340

225

80

230

180

138

36

3

8-f26

380

235

100

265

210

162

40

3

8-f30

430

275

125

315

250

188

40

3

8-f33

500

305

150

355

290

218

44

3

12-f33

550

345

200

430

360

285

52

3

12-f36

650

400
