DIN Globe Valve

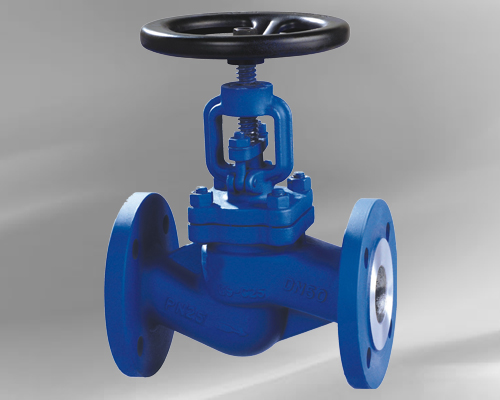

DIN Cast Steel Globe Valve
Size:DN15~DN400 Pressure: PN10~PN100
Material: GS-C25,1.0619,1.4803,1.4408,WCB, LCB,WC6,, CF8, CF8M, CF3, CF3M,CF8C
Design & Manufacture Std: BS EN 13709 and BS1873
Face To Face Std: DIN 3202-F1/F2
Flange Dimension conform to : BS EN1092-1 ,DIN 2543,DIN2544,DIN2545 ,DIN2546
Test Std: DIN 3230 or API 598

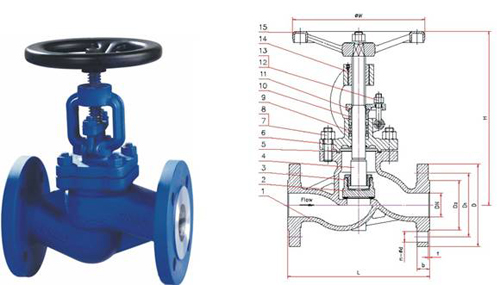

Parts NO.	Parts Name	Material
Parts NO.	Parts Name	GS-C25 Trim NO.1	GS-C25 Trim NO.5	1.4308	1.4408
1	Body	DIN 17245 GS-C25+13Cr	DIN 17245 GS-C25+STL	DIN 17445 1.4308	DIN 17445 1.4408
2	Disc	ASTM A105+13CR	ASTM A105+STL	ASTM A182 F304	ASTM A182 F316
3	Disc nut	Carbon steel	Carbon steel	ASTM A182 F304	ASTM A182 F316
4	Stem	ASTM A182 F6a/420	ASTM A182 F6a/420	ASTM A182 F304	ASTM A182 F316
5	Gasket	Graphite + SS304	Graphite + SS304	Graphite + SS304	Graphite + SS316
6	Bonnet	DIN 17245 GS-C25	DIN 17245 GS-C25	DIN 17445 1.4308	DIN 17445 1.4408
7	Bonnet Bolt	ASTM A193 B7	ASTM A193 B7	ASTM A193 B8	ASTM A193 B8
8	Bonnet Nut	ASTM A194 2H	ASTM A194 2H	ASTM A194 8	ASTM A194 8
9	Stem Packing	Graphite	Graphite	Graphite / PTFE	Graphite / PTFE
10	Gland	A182 F6a	A182 F6a	A182 F304	A182 F316
11	Gland Flange	DIN 17245 GS-C25	DIN 17245 GS-C25	DIN 17445 1.4308	DIN 17445 1.4408
12	Gland Eyebolt	ASTM A193 B7	ASTM A193 B7	ASTM A193 B8	ASTM A193 B8
13	Gland Nut	ASTM A194 2H	ASTM A194 2H	ASTM A194 8	ASTM A194 8
14	Stem Nut	Copper alloy or A439 D2	Copper alloy or A439 D2	Copper alloy or A439 D2	Copper alloy or A439 D2
15	Handwheel	Ductile Iron	Ductile Iron	Ductile Iron	Ductile Iron

Size	PN16 Main Dimension (mm)
DN	D	D1	D2	b	f	n-fd	L	H	fW
15	95	65	45	16	2	4-f14	130	198	120
20	105	75	58	18	2	4-f14	150	250	140
25	115	85	68	18	2	4-f14	160	266	160
32	140	100	78	18	2	4-f18	180	298	180
40	150	110	88	18	3	4-f18	200	315	200
50	165	125	102	20	3	4-f18	230	326	200
65	185	145	122	18	3	4-f18	290	348	250
80	200	160	138	20	3	8-f18	310	383	280
100	220	180	158	20	3	8-f18	350	428	300
125	250	210	188	22	3	8-f18	400	405	350
150	285	240	212	22	3	8-f22	480	588	400
200	340	295	268	24	3	12-f22	600	710	400
Size	PN25 Main Dimension (mm)
DN	D	D1	D2	b	f	n-fd	L	H	fW
15	95	65	45	16	2	4-f14	130	198	120
20	105	75	58	18	2	4-f14	150	250	140
25	115	85	68	18	2	4-f14	160	266	160
32	140	100	78	18	2	4-f18	180	298	180
40	150	110	88	18	3	4-f18	200	315	200
50	165	125	102	20	3	4-f18	230	326	200
65	185	145	122	22	3	8-f18	290	348	250
80	200	160	138	24	3	8-f18	310	386	280
100	235	190	162	24	3	8-f22	350	436	300
125	270	220	188	24	3	8-f26	400	506	350
150	300	250	218	28	3	8-f26	480	588	400
200	360	310	278	30	3	12-f26	600	710	400
Size	PN40 Main Dimension (mm)
DN	D	D1	D2	b	f	n-fd	L	H	fW
50	165	125	102	20	3	4-f18	230	391	200
65	185	145	122	22	3	8-f18	290	433	250
80	200	160	138	24	3	8-f18	310	468	280
100	235	190	162	24	3	8-f22	350	520	300
125	270	220	188	24	3	8-f26	400	608	350
150	300	250	218	28	3	8-f26	480	695	500
200	375	320	285	30	3	12-f30	600	806	500
250	450	385	345	32	3	12-f33	730	910	550
Size	PN63 Main Dimension (mm)
DN	D	D1	D2	b	f	n-fd	L	H	fW
50	180	135	102	26	3	4-f22	300	450	250
65	205	160	122	26	3	8-f22	340	495	250
80	215	170	138	28	3	8-f22	380	531	280
100	250	200	162	30	3	8-f26	430	588	350

125	295	240	188	34	3	8-f30	500	650	350
150	345	280	218	36	3	8-f33	550	715	400
200	415	345	285	42	3	12-f36	650	813	450
Size	PN100 Main Dimension (mm)
DN	D	D1	D2	b	f	n-fd	L	H	fW
50	195	145	102	30	3	8-f26	300	450	250
65	220	170	122	34	3	8-f26	340	495	250
80	230	180	138	36	3	8-f26	380	531	280
100	265	210	162	40	3	8-f30	430	590	350
125	315	250	188	40	3	8-f33	500	650	350
150	355	290	218	44	3	12-f33	550	720	400
200	430	360	285	52	3	12-f36	650	820	450
