DIN Gate Valve

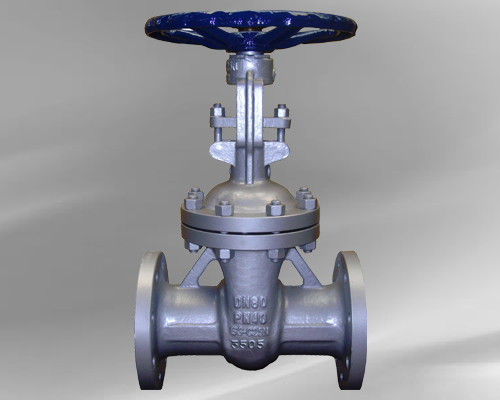

DIN Cast Steel Gate Valve
Size:DN 15~DN1200 Pressure:PN10~PN160
Material: GS-C25,1.0619,1.4408,1.4308,1.4501,WCB,WC6,CF8,CF8M,CF3,CF3M
Design & Manufacture Std: DIN3352
Flange Dimension conform to : BSEN1092-1 and DIN2543,DIN2544,DIN2545,DIN2546
Face To Face Std: DIN 3202-F4/F5/F7 Test Std: DIN 3230 or API 598

Parts NO.	Parts name	WCB Trim No.1	WCB Trim No.5	A351 CF8	A351 CF8M
1	Body	DIN 17245 GS-C25+13CR	DIN 17245 GS-C25+STL	DIN 17445 1.4308	DIN 17445 1.4408
2	Wedge	DIN 17245 GS-C25+13CR	DIN 17245 GS-C25+STL	DIN 17445 1.4308	DIN 17445 1.4408
3	Stem	ASTM A182 F6A/420	ASTM A182 F6A/420	ASTM A182 F304	ASTM A182 F316
4	Bolt	ASTM A193 B7	ASTM A193 B7	ASTM A193 B8	ASTM A193 B8
5	Nut	ASTM A194 2H	ASTM A194 2H	ASTM A194 8	ASTM A194 8
6	Gasket	GRAPHITE+SS304	GRAPHITE+SS304	GRAPHITE+SS304	GRAPHITE+SS316
7	Bonnet	DIN 17245 GS-C25	DIN 17245 GS-C25	DIN 17445 1.4308	DIN 17445 1.4408
8	Packing	GRAPHITE	GRAPHITE	GRAPHITE or PTFE	GRAPHITE or PTFE
9	Gland	A182 F6A	A182 F6A	A182 F304	A182 F316
10	Gland Flange	DIN 17245 GS-C25	DIN 17245 GS-C25	DIN 17445 1.4308	DIN 17445 1.4408
11	Eye bolt	ASTM A193 B7	ASTM A193 B7	ASTM A193 B8	ASTM A193 B8
12	Nut	ASTM A1942H	ASTM A1942H	ASTM A194 8	ASTM A194 8
13	Stem Nut	COPPER ALLOY or D2	COPPER ALLOY or D2	COPPER ALLOY or D2	COPPER ALLOY or D2
14	Hand Wheel	QT400-18	QT400-18	QT400-18	QT400-18

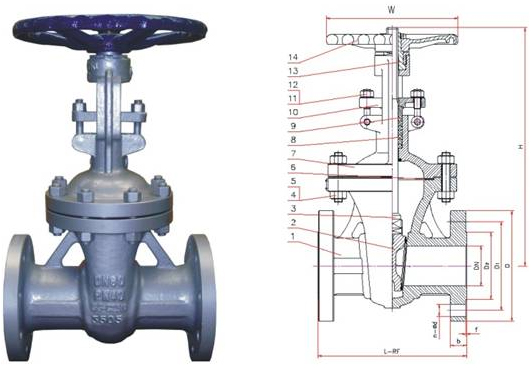

Size.	PN16 Main Dimension (mm)
DN	D	D1	D2	b	f	n-ød	L	H	W
50	165	125	102	20	3	4-ø18	250	360	200
65	185	145	122	18	3	4-ø18	270	380	220
80	200	160	138	20	3	8-ø18	280	418	250
100	220	180	158	20	3	8-ø18	300	488	280
125	250	210	188	22	3	8-ø18	325	531	300
150	285	240	212	22	3	8-ø22	350	638	300
200	340	295	268	24	3	12-ø22	400	758	350
250	405	355	320	26	3	12-ø26	450	906	400
300	460	410	378	28	4	12-ø26	500	1058	450
350	520	470	438	30	4	16-ø26	550	1215	500
400	580	525	490	32	4	16-ø30	600	1392	500
500	715	650	610	36	4	20-ø33	700	1676	680

Size.	PN25 Main Dimension (mm)
DN	D	D1	D2	b	f	n-ød	L	H	W
50	165	125	102	20	3	4-ø18	250	362	200
65	185	145	122	22	3	8-ø18	270	383	220
80	200	160	138	24	3	8-ø18	280	418	250
100	235	190	162	24	3	8-ø22	300	496	280
125	270	220	188	24	3	8-ø26	325	606	300
150	300	250	218	28	3	8-ø26	350	674	300
200	360	310	278	30	3	12-ø26	400	766	350
250	425	370	335	32	3	12-ø30	450	911	400
300	485	430	395	34	4	16-ø30	500	1067	450
350	555	490	450	36	4	16-ø33	550	1223	500
400	620	550	505	40	4	16-ø36	600	1400	500
500	730	660	615	40	4	20-ø36	700	1676	600

Size.	PN40 Main Dimension (mm)
DN	D	D1	D2	b	f	n-ød	L	H	W
50	165	125	102	20	3	4-ø18	250	364	200
65	185	145	122	22	3	8-ø18	290	389	220
80	200	160	138	24	3	8-ø18	310	418	250
100	235	190	162	24	3	8-ø22	350	489	280
125	270	220	188	24	3	8-ø26	400	541	300
150	300	250	218	28	3	8-ø26	450	657	350
200	375	320	285	30	3	12-ø30	550	824	400
250	450	385	345	32	3	12-ø33	650	985	450
300	515	450	410	34	4	16-ø33	750	1183	500
350	580	510	465	38	4	16-ø36	850	1312	600
400	660	585	535	50	4	16-ø39	950	1458	600
500	755	670	615	52	4	20-ø42	1150	1658	650

Size.	PN63 Main Dimension (mm)
DN	D	D1	D2	b	f	n-ød	L	H	W
50	180	135	102	26	3	4-ø22	250	364	200
65	205	160	122	26	3	8-ø22	290	389	250
80	215	170	138	28	3	8-ø22	310	418	250
100	250	200	162	30	3	8-ø26	350	489	300
125	295	240	188	34	3	8-ø30	400	514	300
150	345	280	218	36	3	8-ø33	450	657	350
200	415	345	285	42	3	12-ø36	550	824	400
250	470	400	345	46	3	12-ø36	650	985	450
300	530	460	410	52	4	16-ø36	750	1183	500
350	600	525	465	56	4	16-ø39	850	1312	600
400	670	585	535	60	4	16-ø42	950	1458	600
Size.	PN100 Main Dimension (mm)
DN	D	D1	D2	b	f	n-ød	L	H	W
50	195	145	102	30	3	8-ø26	250	490	250
65	220	170	122	34	3	8-ø26	290	540	250
80	230	180	138	36	3	8-ø26	310	573	280
100	265	210	162	40	3	8-ø30	350	675	300
125	315	250	188	40	3	8-ø33	400	744	350
150	355	290	218	44	3	12-ø33	450	800	450
200	430	360	285	52	3	12-ø36	550	900	500
250	505	430	345	60	3	12-ø39	650	1050	650
300	585	500	410	68	4	16-ø42	750	1208	700
